ULTRA-LIGHT SIMULATOR

GETTING STARTED MANUAL

  • Preparation
  • Screens 1/4
  • Screens 2/4
  • Screens 3/4
  • Screens 4/4
  • Mast
  • Screen fixation 1/2
  • Screen fixation 2/2

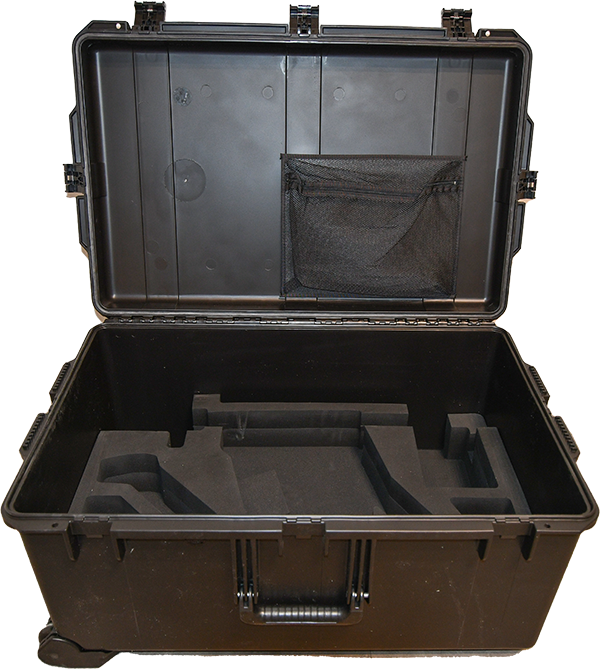

  • Case A
  • Small wires
  • Computer
  • Main cables
  • Cables connection
  • Headset
  • Right controller
  • Left controller
  • Foot pedal
  • Controller connection
  • Ready for simulation

STEP 1

/ Preparation

dsc 2098trait bis

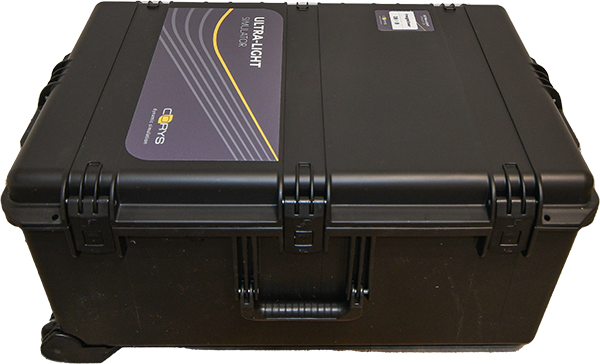

icones

No tool needed

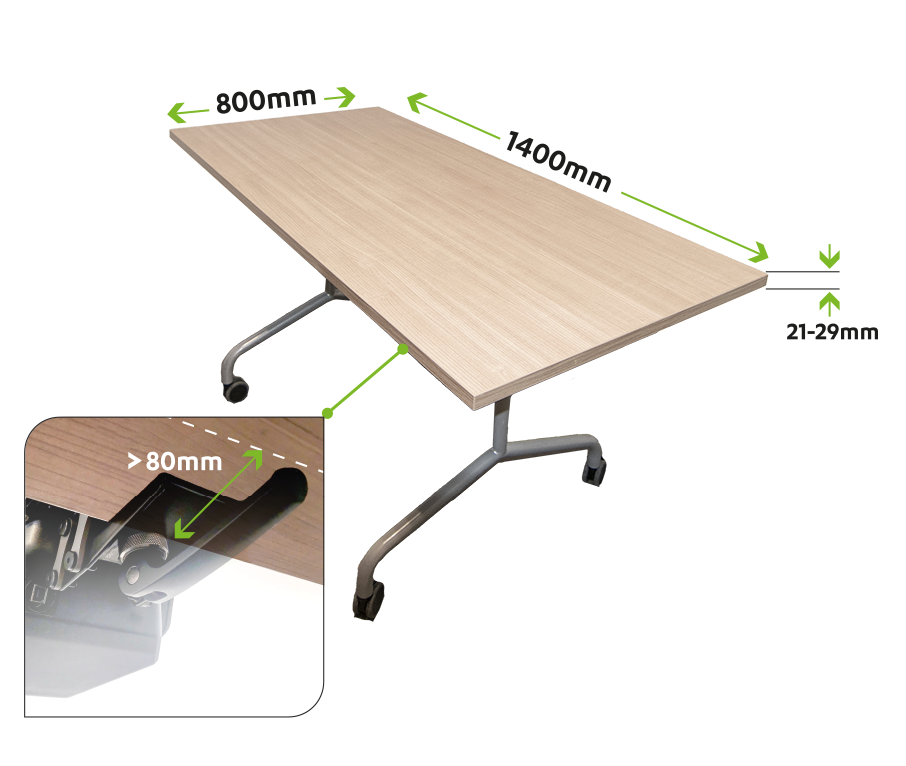

Table constraint :

-Dimensions 1400mm * 800mm

-Thickness 21mm to 29mm

-Min depth space 80mm from the edge

Suite case A

Suite case A

Suite case B

Suite case B

STEP 2

/ Screens

A dsc 2099trait

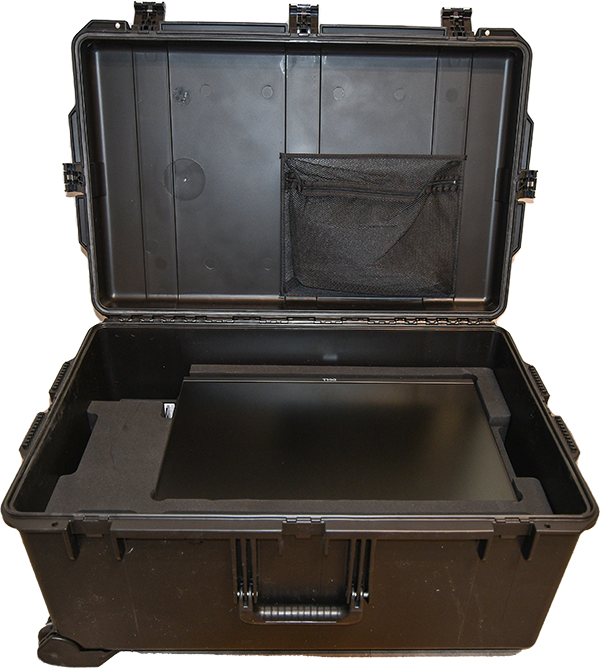

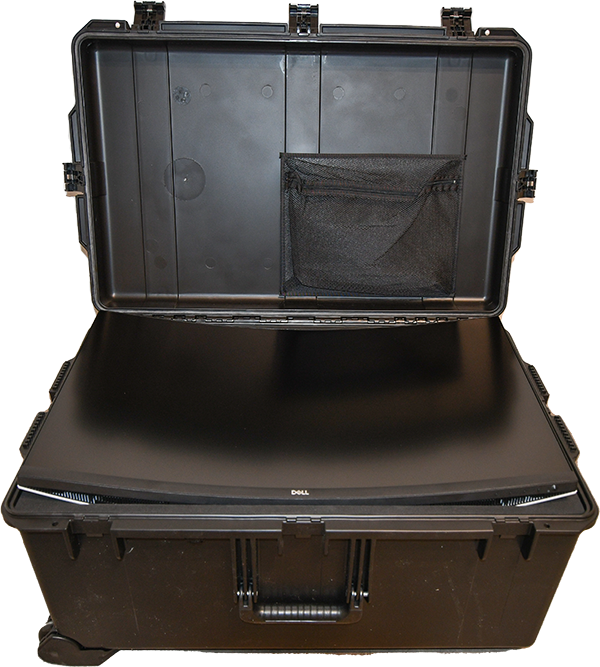

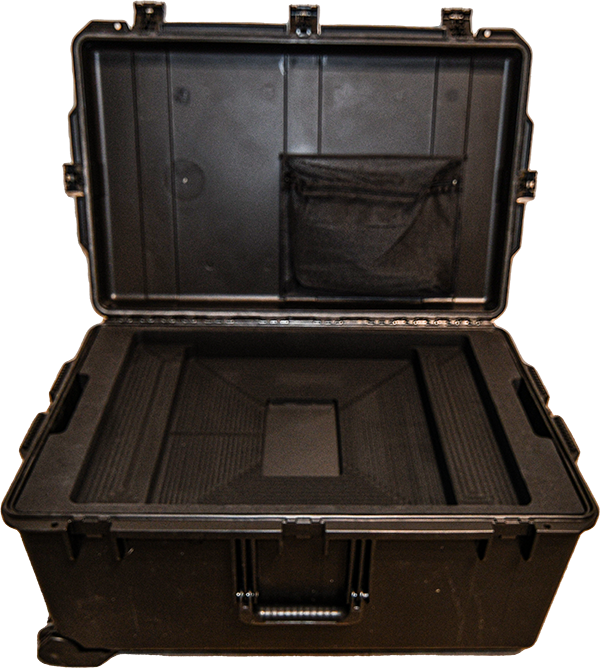

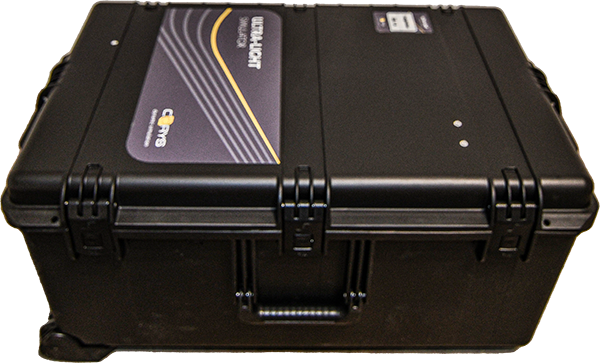

Start with case B

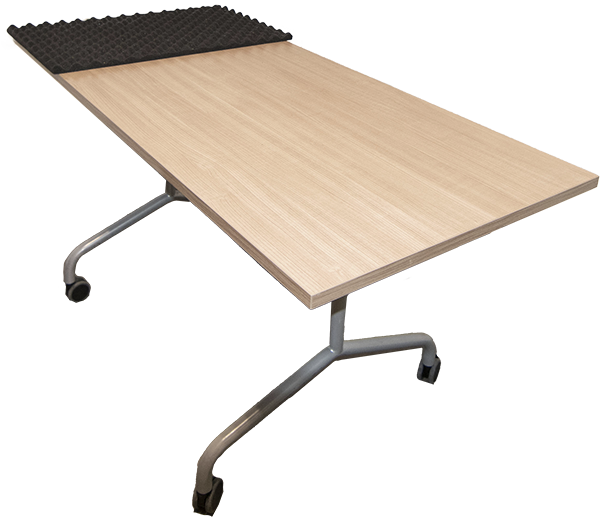

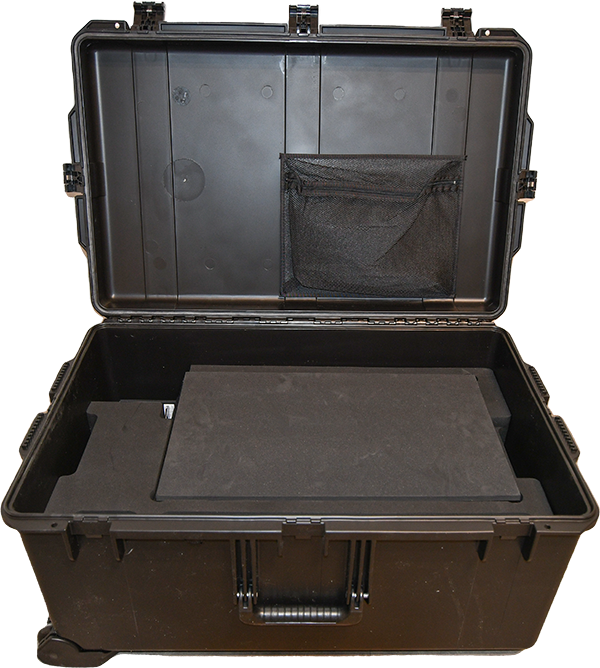

Place screens on table using the provided protections

A Suite case B

Suite case B

Suite case B

Suite case B

STEP 3

/ Screens

B dsc 2100trait

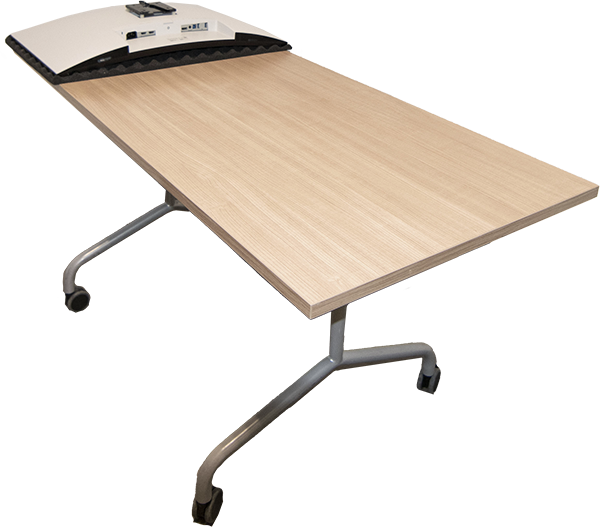

Place screens on table using the provided protections

B Suite case B

Suite case B

Suite case B

Suite case B

STEP 4

/ Screens

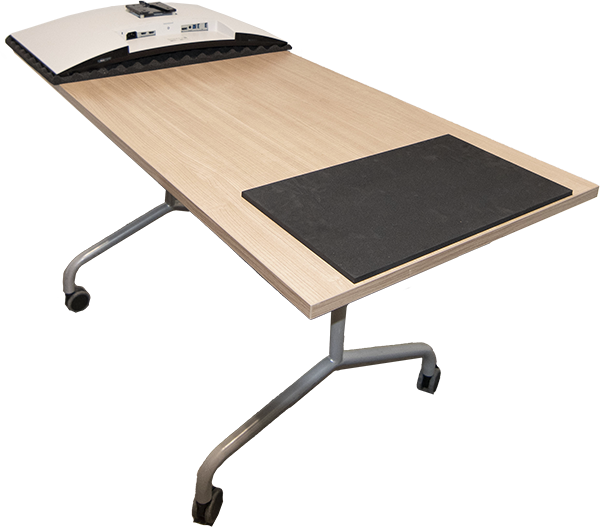

C dsc 2101trait

Place screens on table using the provided protections

C Suite case B

Suite case B

Suite case B

Suite case B

STEP 5

/ Screens

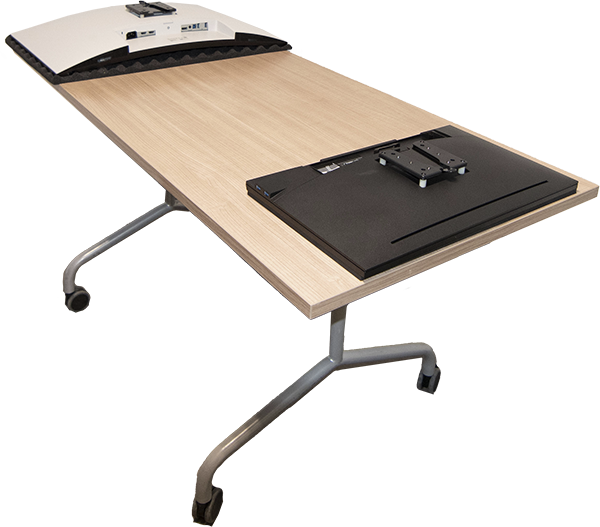

D dsc 2102trait

Place screens on table using the provided protections

D Suite case B

Suite case B

Suite case B

Suite case B

STEP 6

/ Mast

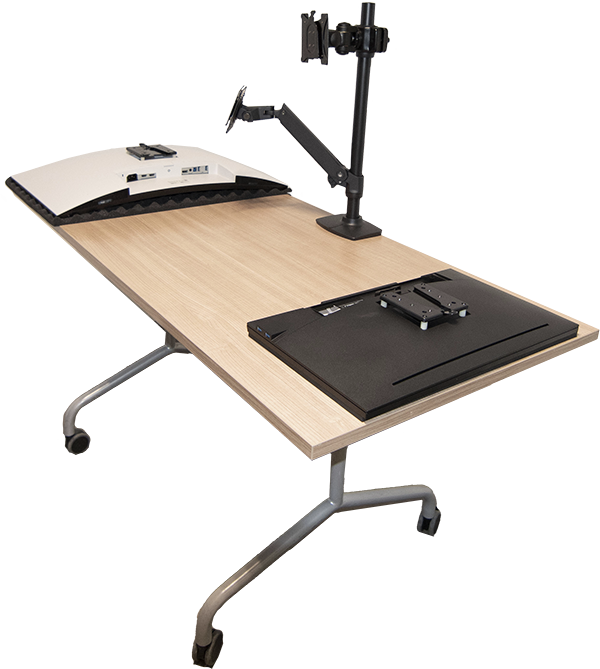

E dsc 2103trait

Rotate screen arm for better prehension

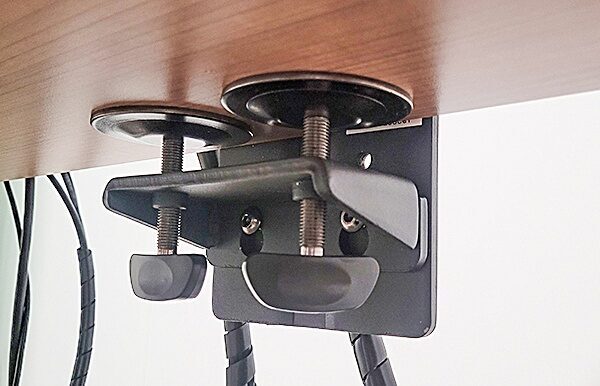

Fix the mast on the table

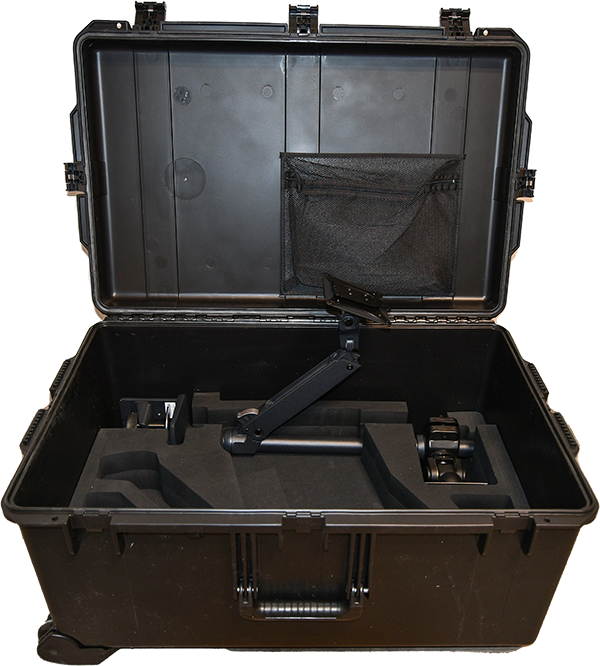

Mast screen mount
E Suite case B

Suite case B

Suite case B

Suite case B

STEP 7

/ Screen fixation

dsc 2104trait

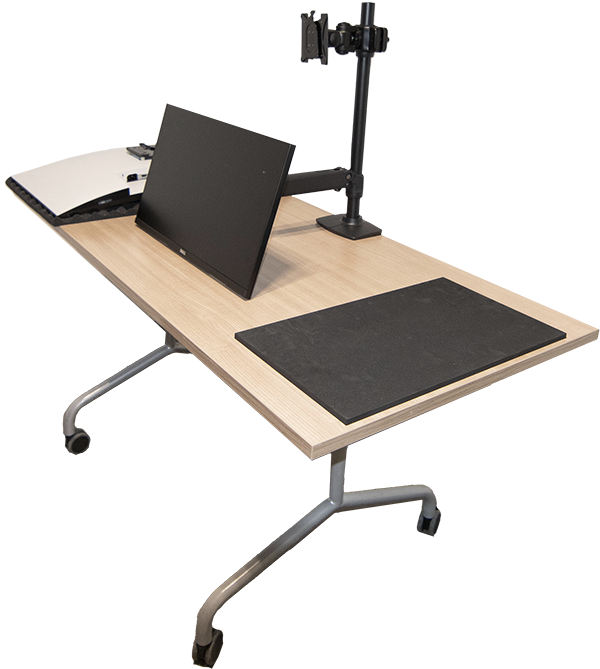

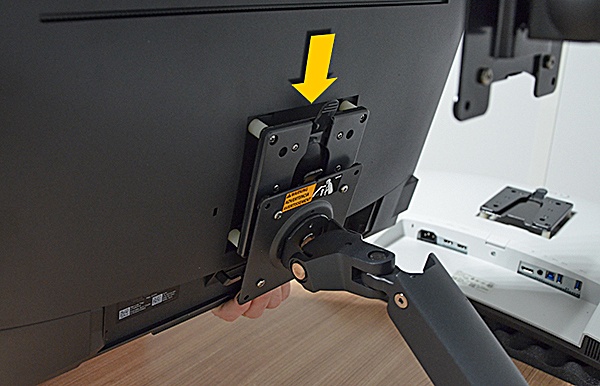

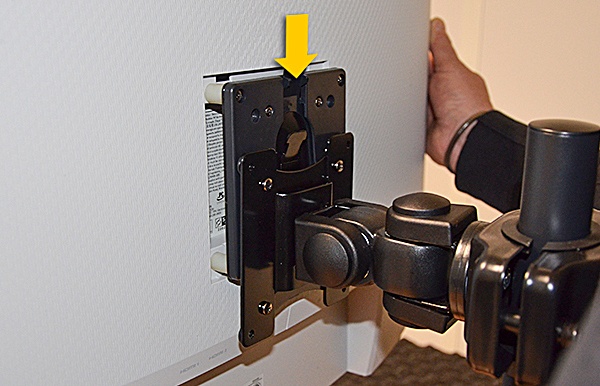

Use the quick fix for the screens
Touch screen mount

STEP 8

/ Screen fixation

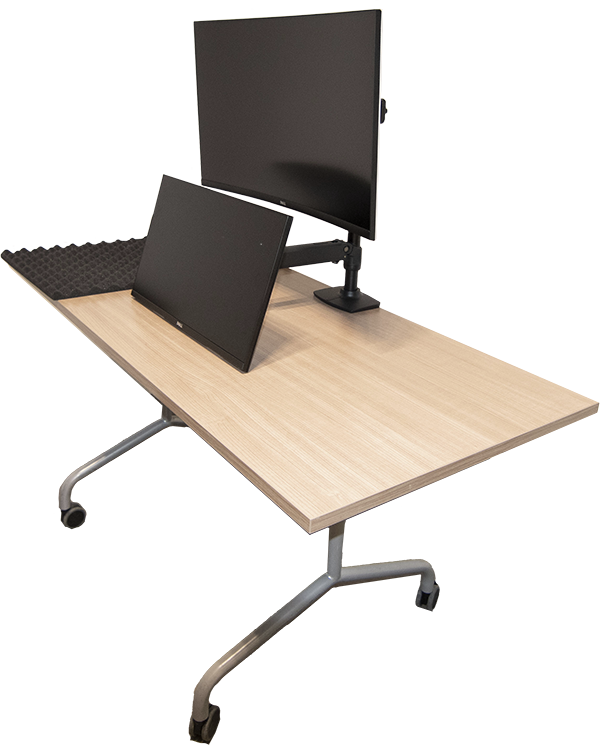

dsc 2105trait
Use the quick fix for the screens
Touch screen mountD

STEP 9

/ Case A

dsc 2106trait

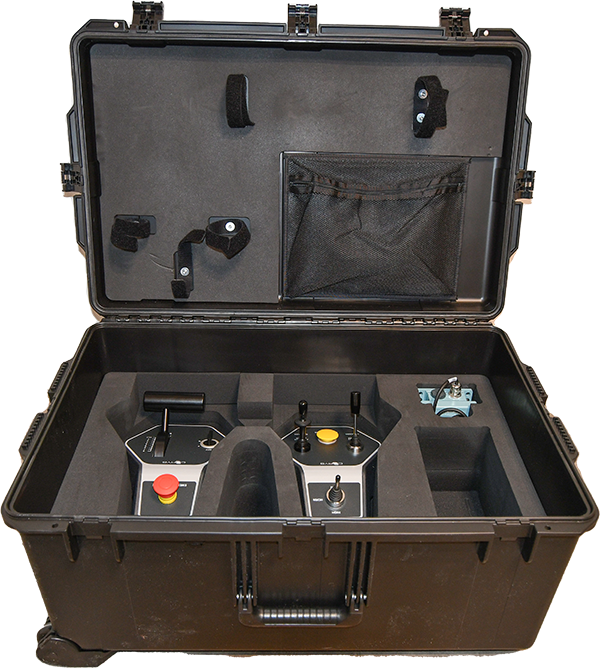

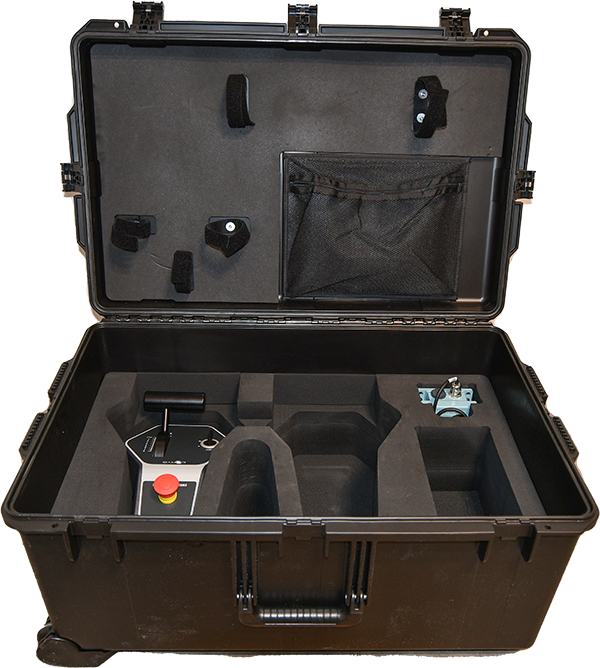

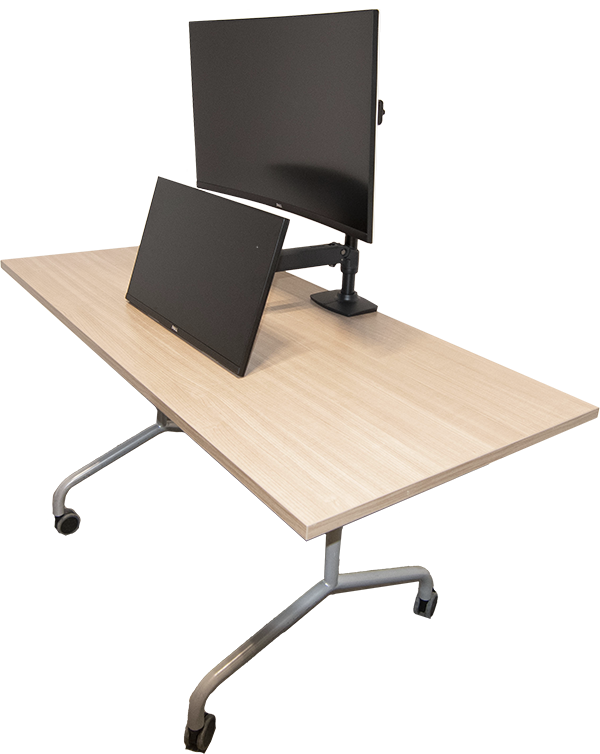

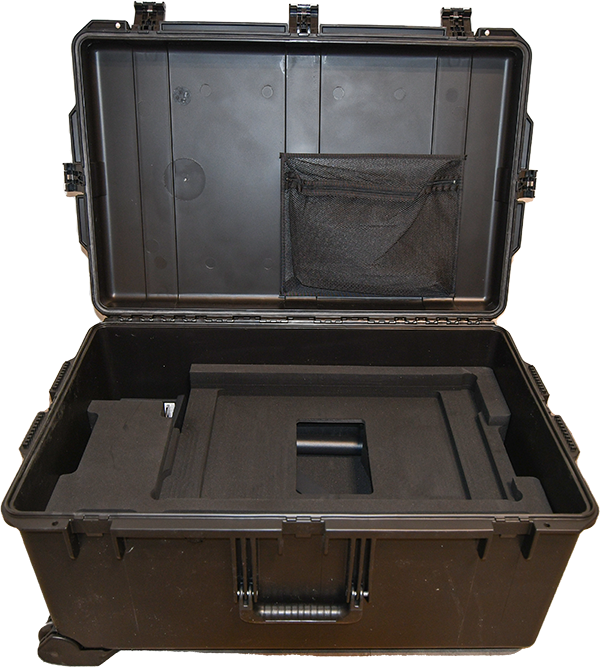

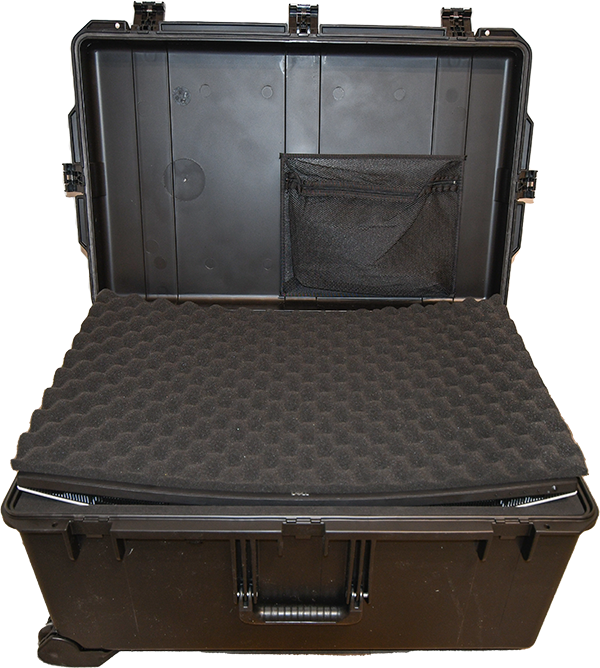

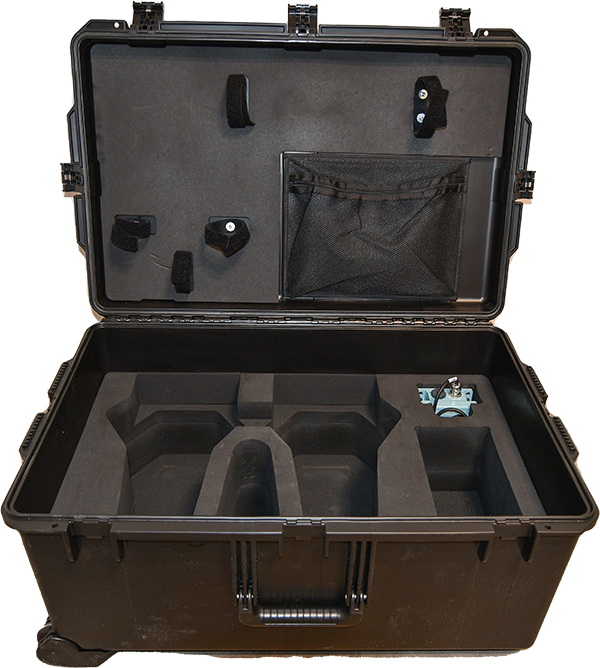

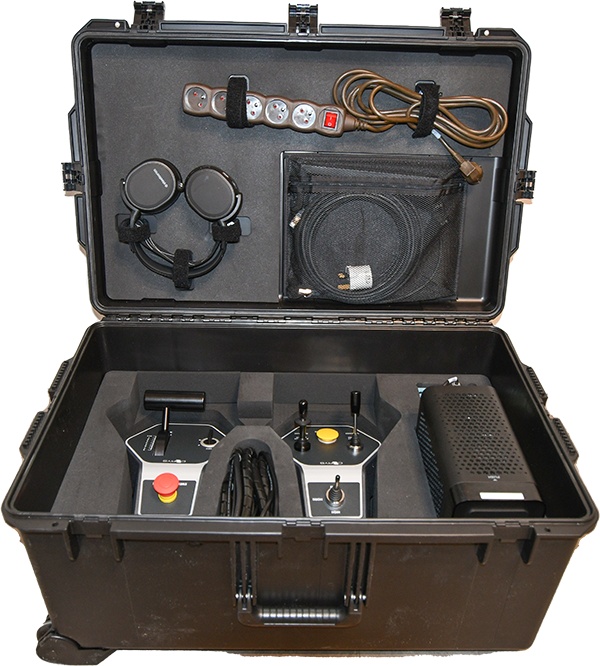

Switch to case A

Suite case A

Suite case A

Suite case A

Suite case A

STEP 10

/ Small wires

F dsc 2107trait

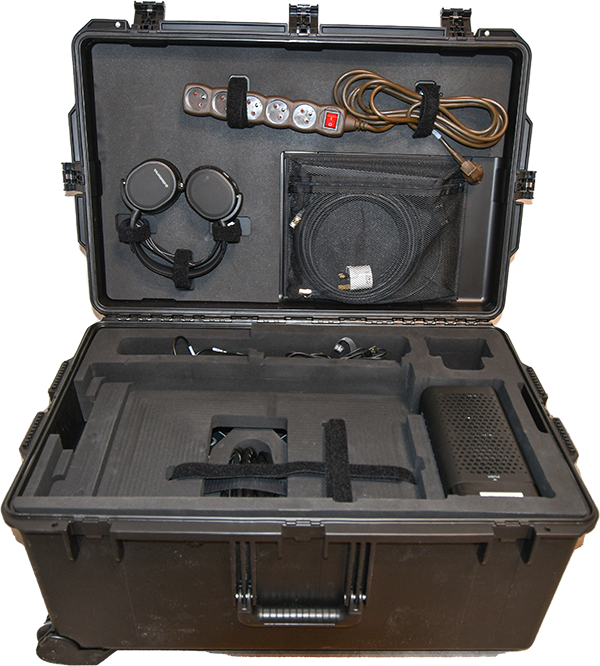

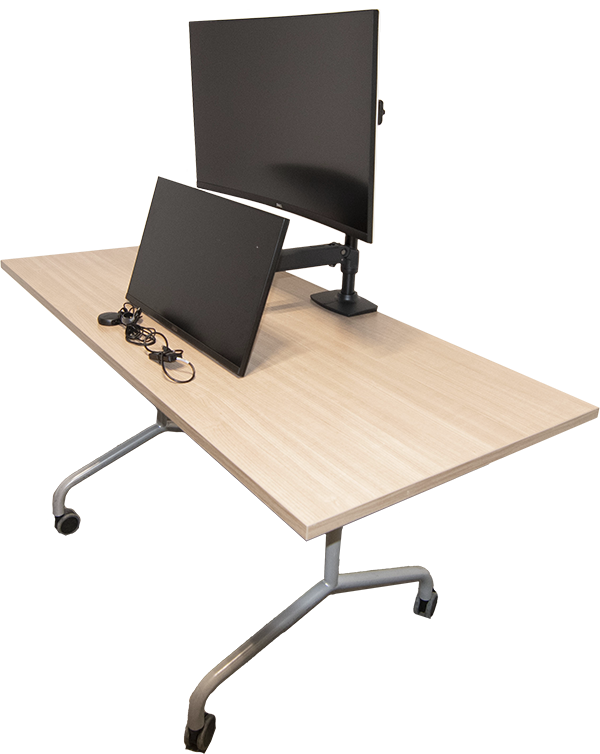

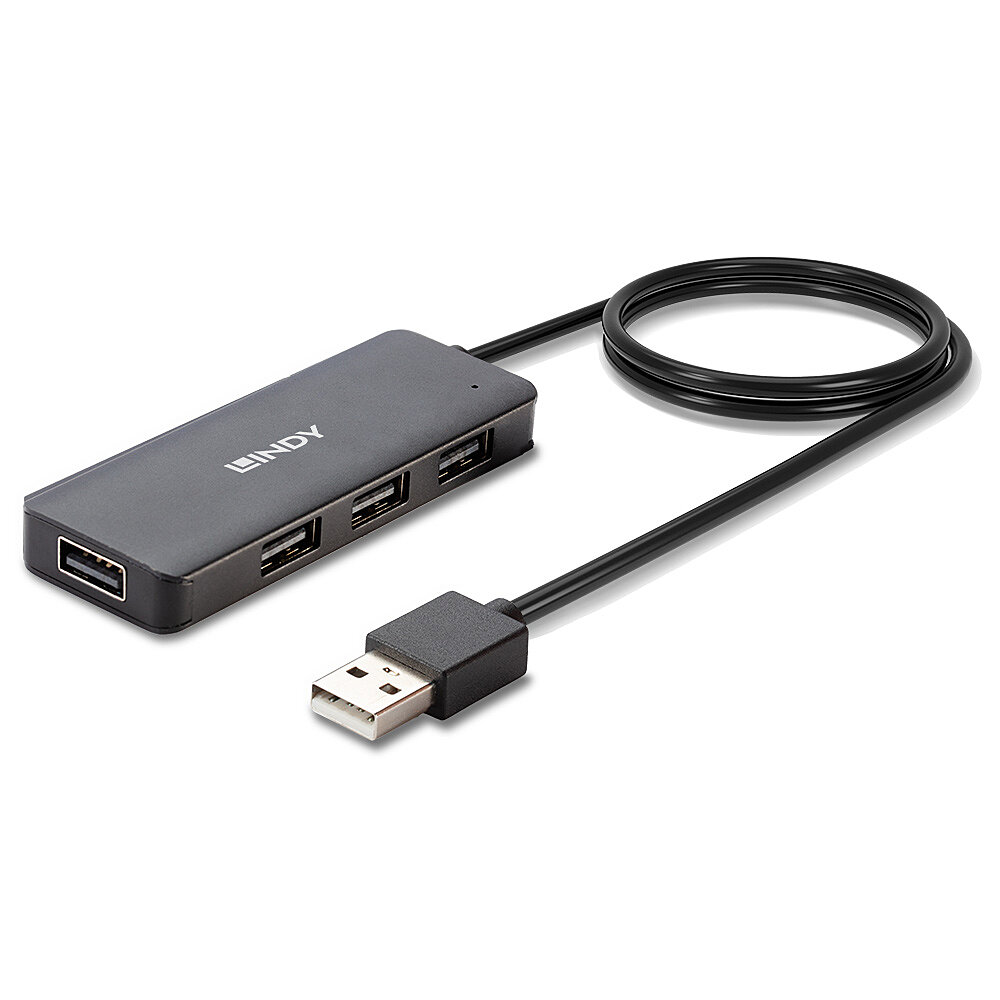

Prepare USB Hub and Headset dongle

F Suite case A

Suite case A

Suite case A

Suite case A

STEP 11

/ Computer

G dsc 2108trait

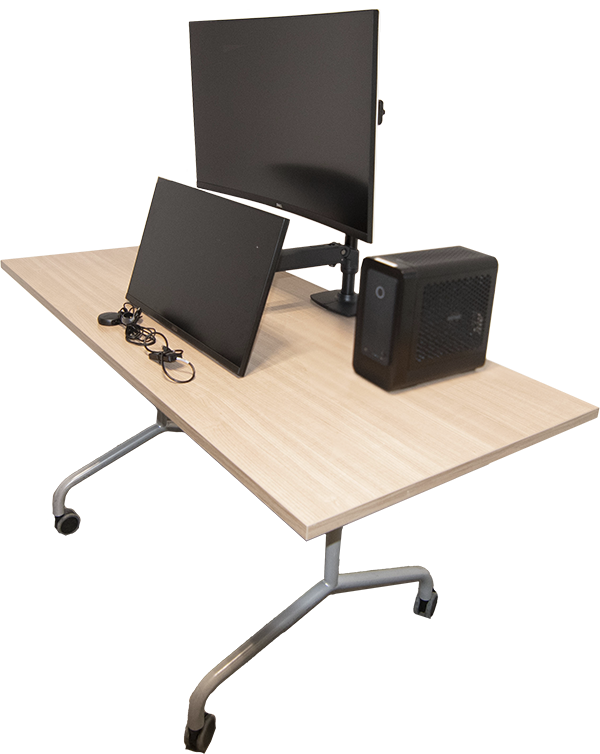

Place computer on the table

G Suite case A

Suite case A

Suite case A

Suite case A

STEP 12

/ Main cables

H dsc 2109trait

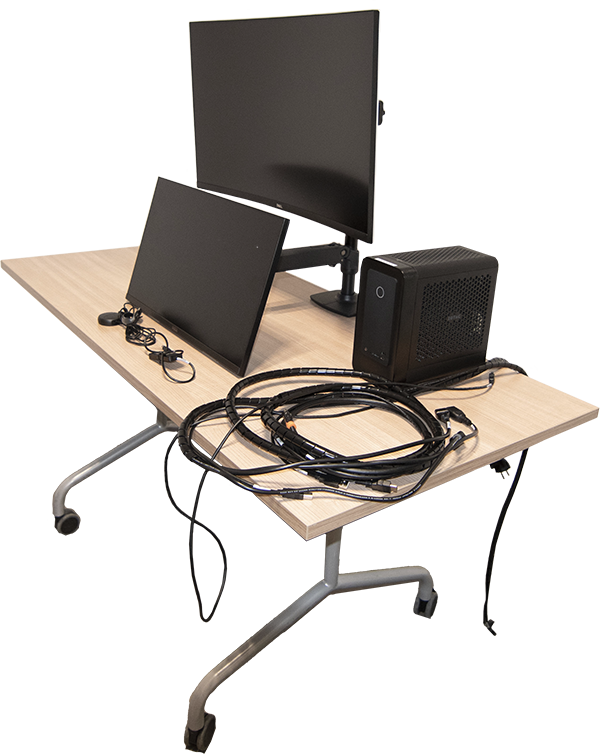

Prepare main cables

– 3 cable sets

– Ethernet cable

– Power strip

H Suite case A

Suite case A

Suite case A

Suite case A

STEP 13

/ Cables connection

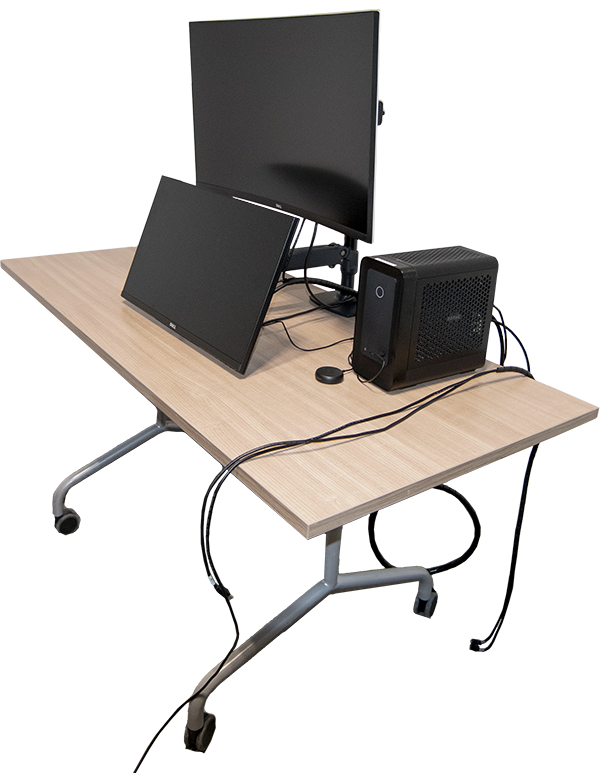

dsc 2110trait

Connect the power cables

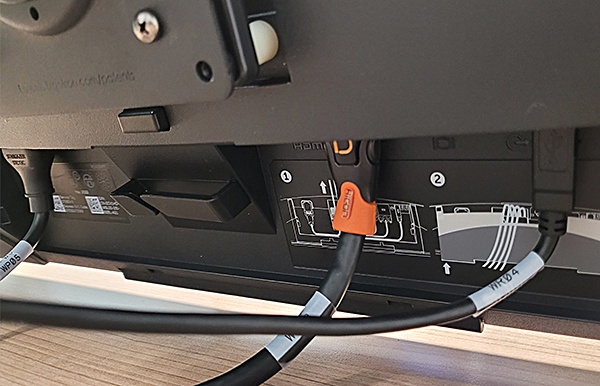

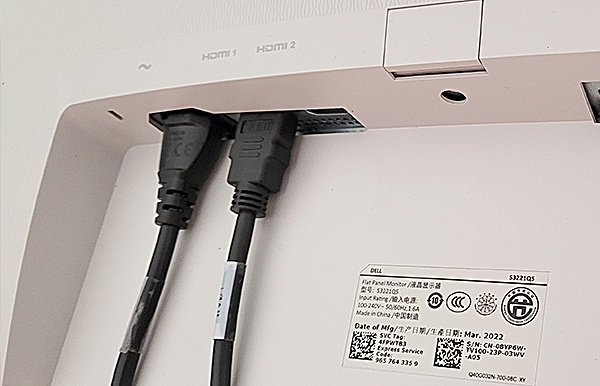

Connect the video & USB cables

Connect the Ethernet cable

Connect the headset dongle

Do not connect to main power supply

3D screen
Touch screen

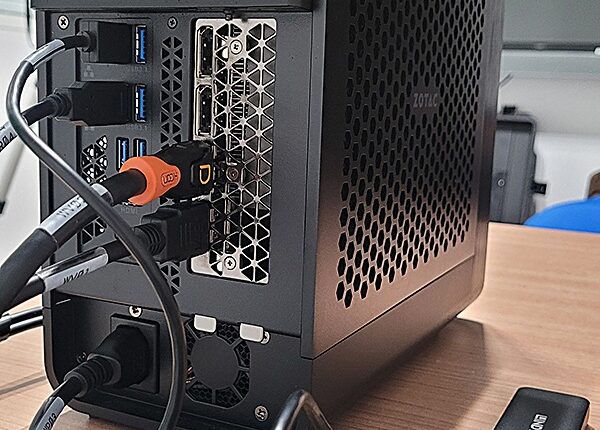

PC rear

STEP 14

/ Headset

J dsc 2111trait

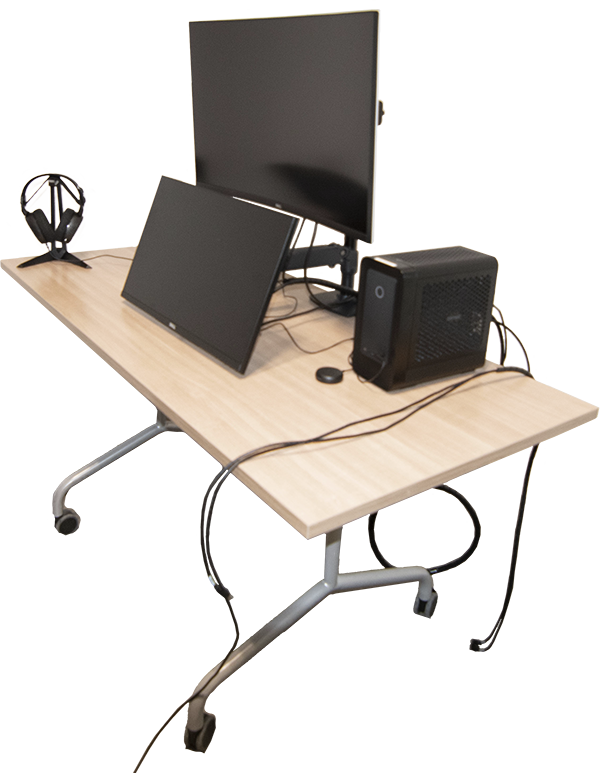

Place the headset on the table

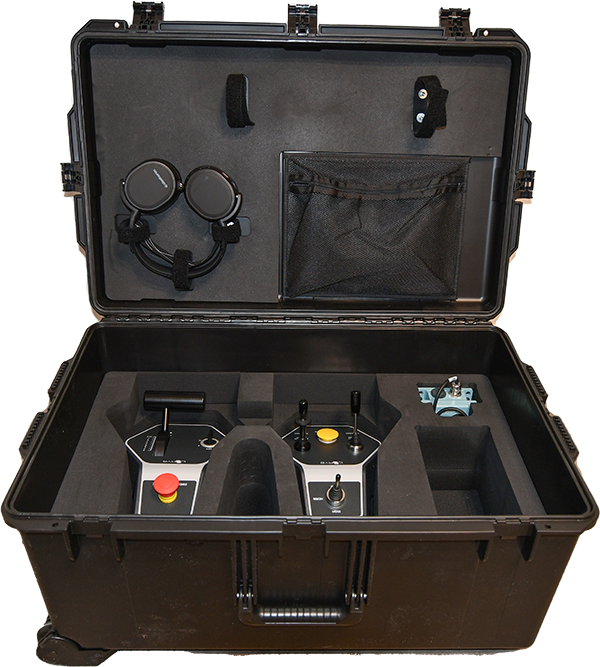

J Suite case A

Suite case A

Suite case A

Suite case A

STEP 15

/ Right controller

K dsc 2112trait

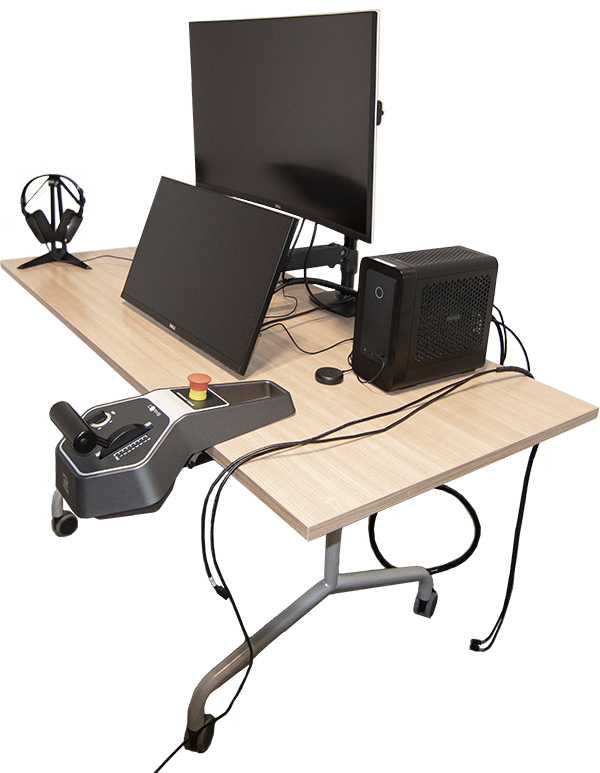

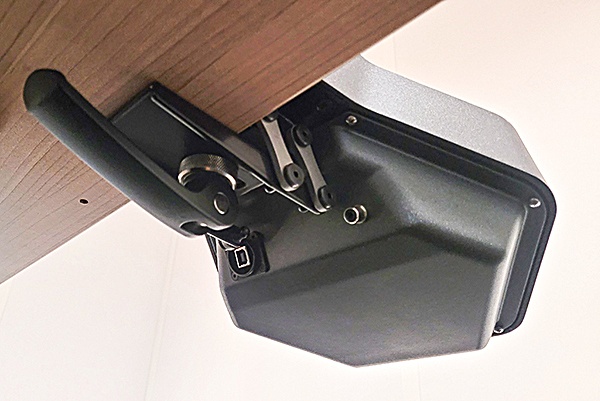

Fix the right controller

K Suite case A

Suite case A

right

STEP 16

/ Left controller

L dsc 2113trait

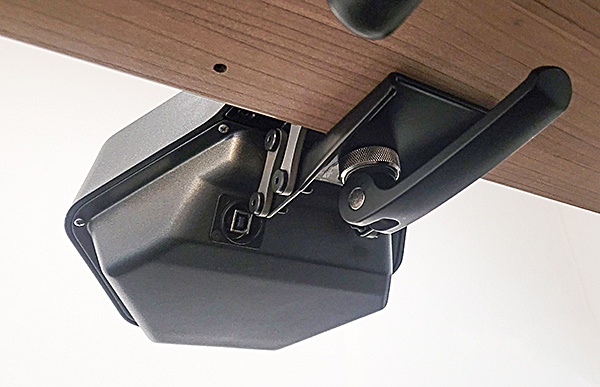

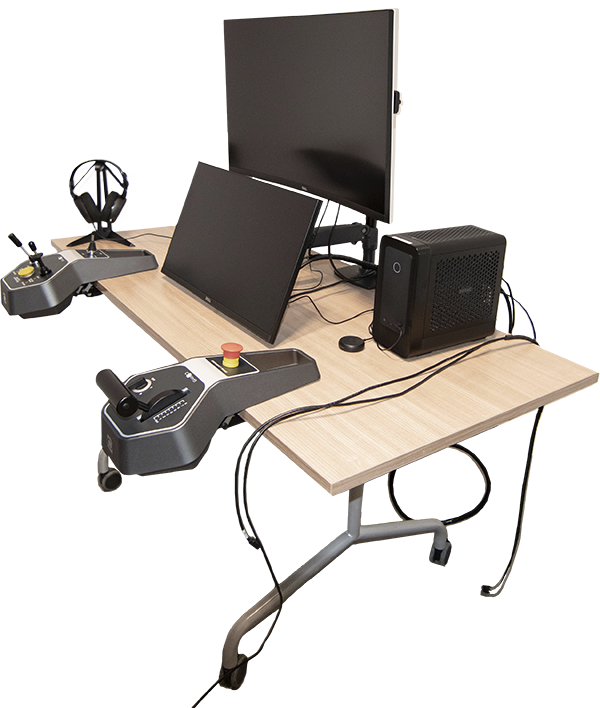

Fix the left controller
L Suite case A

Suite case A

left

STEP 17

/ Foot pedal

M dsc 2114trait

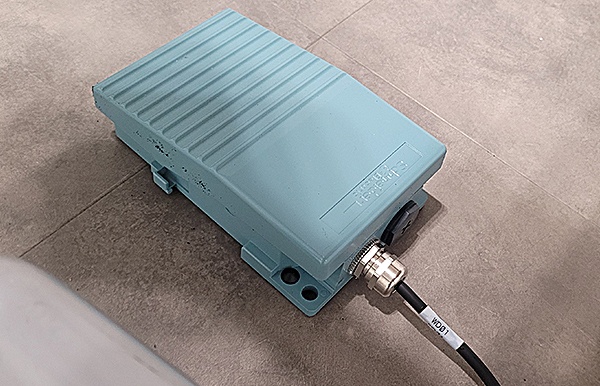

Place the foot pedal on floor
M Suite case A

Suite case A

Foot pedal wiring

STEP 18

/ Controller connection

dsc 2114trait
Connect left and right controllers  on USB hub Connect foot pedal to right controller
42986 5

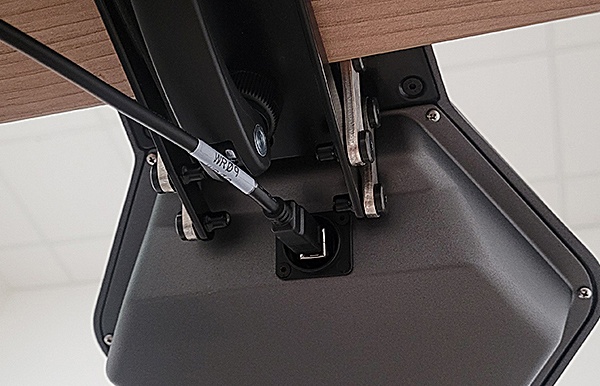

Left controller wiring

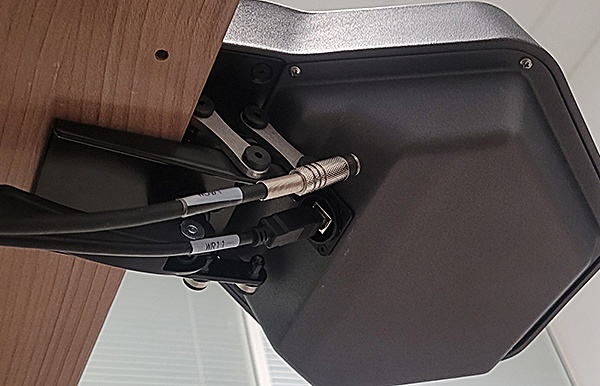

Right controller wiring

STEP 19

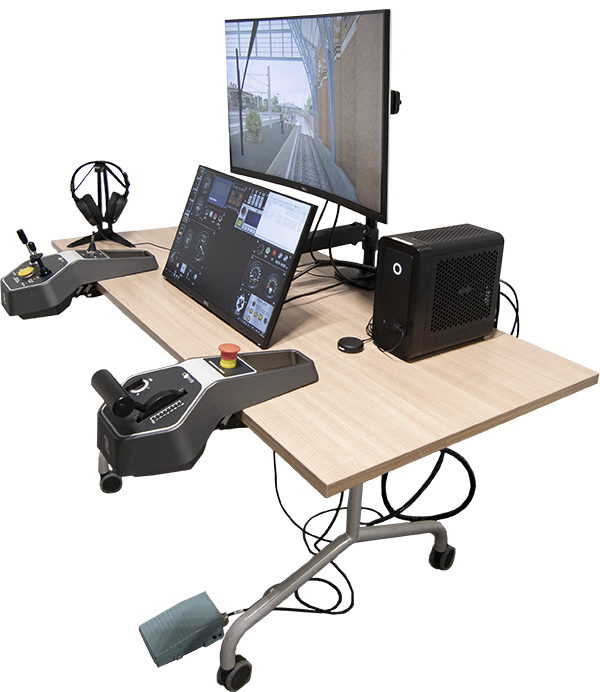

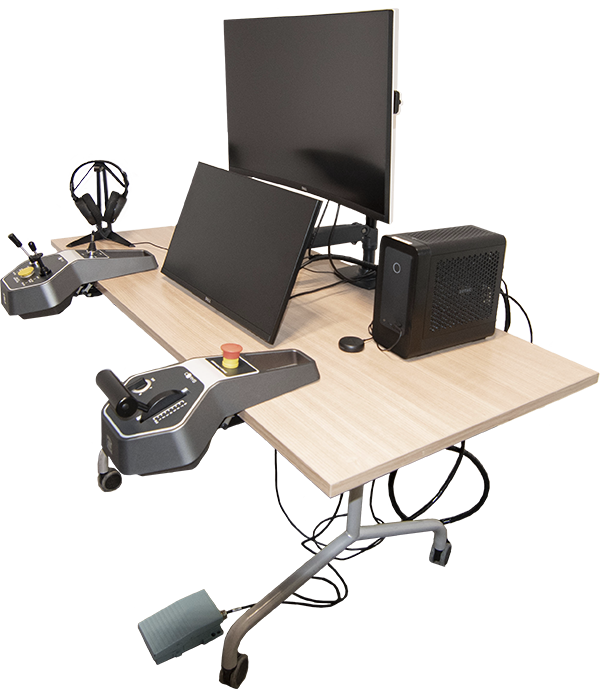

/ Ready for simulation

dsc 2115trait

Connect power strip to main power supply

Are you ready for the CORYS simulation experience?
